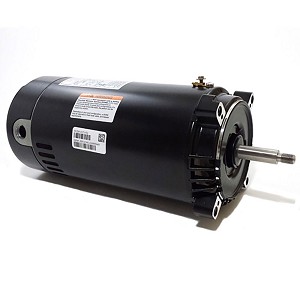

A.O. Smith Replacement C-Face Motor 1.5HP Up-Rated Single-Speed

The AO Smith B229SE Pool Pump Motor is a C-Face Mount style motor with a 56J Frame and is an Up-Rated 1.5 Horsepower Motor. C-Frame motors have a round "face" where the motor mounts to the pump with 4 bolt holes to attach the pump and a threaded shaft.

C-Face 56J Frame Motors are most commonly used on Hayward Super II, Hayward Super Pump, Hayward Northstar, Hayward Max-Flo, Jacuzzi Magnum, Jandy Plus HP, Jandy Stealth and Jandy HHP pumps.

A.O. Smith a name you can trust for pool replacement motors.

Single Speed

115/230 Volts

18.6/9.3 Max Amps

1.00 Service Factor

Threaded Shaft

56J Frame

3450 RPM

60 HZ
