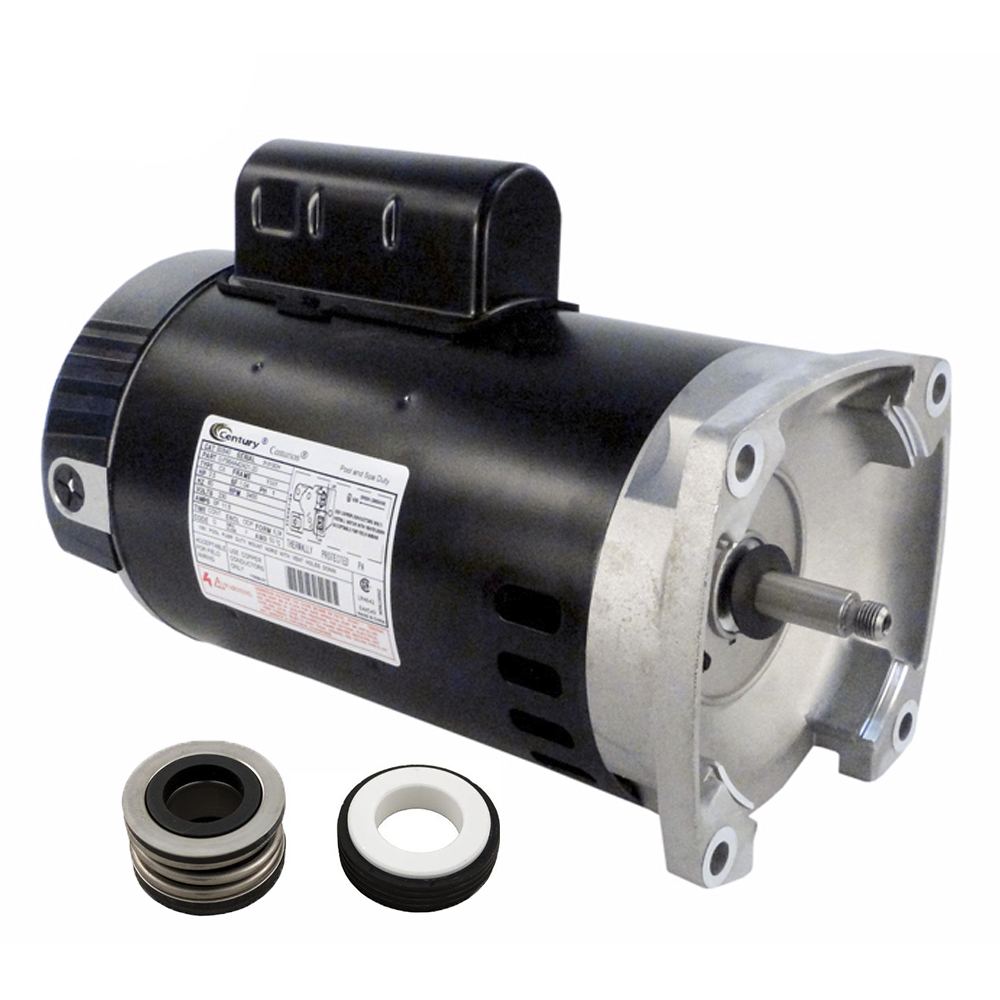

Puri Tech Motor and Seal Replacement Kit for B2852 and PS-200

Puri Tech Motors are equivalent replacements for most popular pool and spa manufacturers' pumps

Features :

Pool Pump Motor, PSC, Open Drip proof

Mounting: flange, horizontal only

3/4 HP, 3450 Nameplate RPM, 56Y NEMA/IEC Frame, Voltage 115/230, 10.8/5.4 Full Load Amps, 1 Phase, 60 Hz

Shaft : Threaded 1/2-20 UNF-2A RH, Shaft Material 303 Stainless Steel

Shaft Dia. 5/8 In., Shaft Length 7/16 In.,

Insulation: Class B Thermal protection: auto, except 3-phase motors have none

1.25 Service Factor

Ambient Temperature 50 Degrees C

Efficiency Group Standard

UL Recognized, CSA Certified
